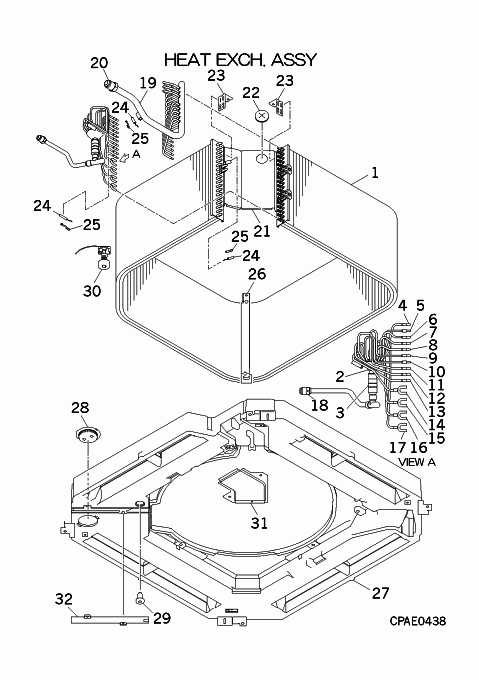

FDT100VH/1 HEAT EXCH. ASSY

FDT100VH/1 HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-25] In Stock
PJF301A042
HEAT EXCH ASSY(AIR
[2] Contact
SSA315A314AN
DISTRIBUTOR
Contact
Notes: !
[2-18] In Stock
PJF315A027F
DISTRIBUTOR ASSY
[3] Contact
SSA357A051G
STRAINER
Contact
[4] Contact
PJF315B022
CAPILLARY
Contact
Notes: !D3.0XD4.0 L120
[5] Contact
PJF315B022A
CAPILLARY
Contact
Notes: !D3.0XD4.0 L120
[6] Contact
PJF315B022B
CAPILLARY
Contact
Notes: !D3.0XD4.0 L120
[7] Contact
PJF315B022C
CAPILLARY
Contact
Notes: !D3.0XD4.0 L120
[8] Contact
PJF315B022D
CAPILLARY
Contact
Notes: !D3.0XD4.0 L120
[9] Contact
PJF315B022F
CAPILLARY
Contact
Notes: !D2.8XD4.0 L220
[10] Contact
PJF315B022G
CAPILLARY
Contact
Notes: !D2.8XD4.0 L220
[11] Contact
PJF315B022H
CAPILLARY
Contact
Notes: !D2.0XD4.0 L260
[12] Contact
PJF315B022J
CAPILLARY
Contact
Notes: !D2.0XD4.0 L260
[13] Contact
PJF315B022K
CAPILLARY
Contact
Notes: !D2.0XD4.0 L200
[14] Contact
PJF315B025
CAPILLARY ASSY
Contact
Notes: !D2.8XD4.0 L260
[15] Contact
PJF315B025A
CAPILLARY ASSY
Contact
Notes: !D2.4XD4.0 L220
[16] Contact
PJF315B025B
CAPILLARY ASSY
Contact
Notes: !D3.0XD4.0 L260
[17] Contact
PJF315B025C
CAPILLARY ASSY
Contact
Notes: !D1.8XD4.0 L300
[18] In Stock
SSA323F088
UNION(SLD)
Notes: LENGTH 2.6CM Show Image
SSA323F088
[19-20] Contact
PJF315D021H
HEADER ASSY,GAS
Contact
Notes: !
[20] Contact
SSA323F092F
UNION,SOLDER
Contact
[21-22] Contact
PJF141A007
PLATE ASSY,BAFFLE
Contact
[22] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[23] In Stock
PJF116A040
BRACKET(PLATE,SIDE)
[24] In Stock
PJF551A002K
SENSOR ASSY(TEMP)
Notes: THI-R1,2,3, THI-R1,2,3 - 3 refrigerant (coil) sensors on same plug Show Image
PJF551A002K
[25] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[26] Contact
PJF116A048A
BRACKET(HEAT EX)
Contact
[27-29] In Stock
PJF454A007B
PAN ASSY,DRAIN
[28] In Stock
PJF129A086
CAP & NOZZLE(DRAIN
[29] Out of Stock
AHT326A002B
PLUG
[30] In Stock
PJF536A003
SWITCH ASSY,FLOAT
Notes: FS, FLOAT SWITCH/ LENGTH 143.5CM Show Image
PJF536A003
[31] Contact
PJF142A007A
COVER
Contact
[32] Out of Stock
PJF129A083
COVER(DP)
