FDT100V/B PANEL ASSY

FDT100V/B PANEL ASSY

Available Parts

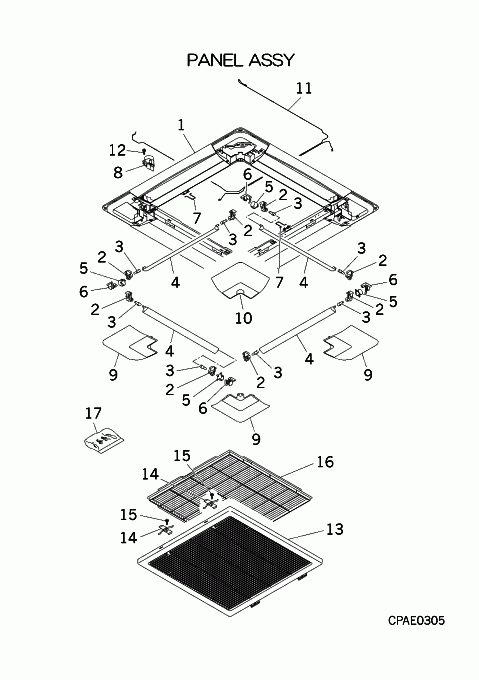

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJF122A006 PANEL,FRONT Contact Substitute: OUT OF PRODUCTION Notes: **NOT FACIA PANEL** (ONLY HALF)   Contact
  • [1-12] PJF122A005BA PANEL ASSY,FRONT Contact Notes: !   Contact
  • [1-17] PJF122A001BA PANEL ASSY,FRONT Contact Notes: !T-PSA-36W-E / SALES ITEM, !T-PSA-36W-E   Contact
  • [2] PJF129A002 COLLAR Contact Notes: ***SOLD INDIVIDUALLY***   Contact
  • [3] PJF144A001 CRANK Contact   Contact
  • [4] PJF436A001 LOUVER,BLOW In Stock
  • [5] SSA512T096 STEPPING MOTOR In Stock Substitute: SSA512T049
  • [5-6] PJF512T001 MOTOR ASSY In Stock Show Image
  • [6] PJF129A003 SUPPORT(MOTOR) Contact   Contact
  • [7] PJF962C001 WIRE In Stock Notes: U SHAPED METAL WIRE
  • [8] PJF129A004A COVER ASSY Contact   Contact
  • [9] PJF132A001 LID ASSY,CORNER In Stock Notes: DOES NOT HAVE MITSUBISHI LOGO
  • [10] PJF132A001C LID ASSY,CORNER In Stock Substitute: PJF132A001F Notes: HAS MITSUBISHI LOGO
  • [11] PJF504A014 WIRING ASSY In Stock Notes: LM1,LM2,LM3,LM4-CNJ2, LM1,LM2,LM3,LM4- CNJ2
  • [12] W011D04X010 TAP-SCREW In Stock Substitute: PJF006A001M Notes: 1PC ONLY, 4X10 Show Image
  • [13] PJF435A003G GRILLE,AIR INLET In Stock
  • [13-15] PJF435A001C GRILLE ASSY,INLET In Stock Substitute: PJF435A001D
  • [14] PJF129A007 STOPPER In Stock Show Image
  • [15] W011D04X010 TAP-SCREW In Stock Substitute: PJF006A001M Notes: 1PC ONLY, 4X10 Show Image
  • [16] PJF437A001 FILTER,AIR In Stock Substitute: PJF437A001A Notes: W588XD562(T17), W588XD562(T17)
  • [17] PJF006A001 PARTS SET In Stock Show Image
SKU: FDT100V/B PANEL ASSY Category:
